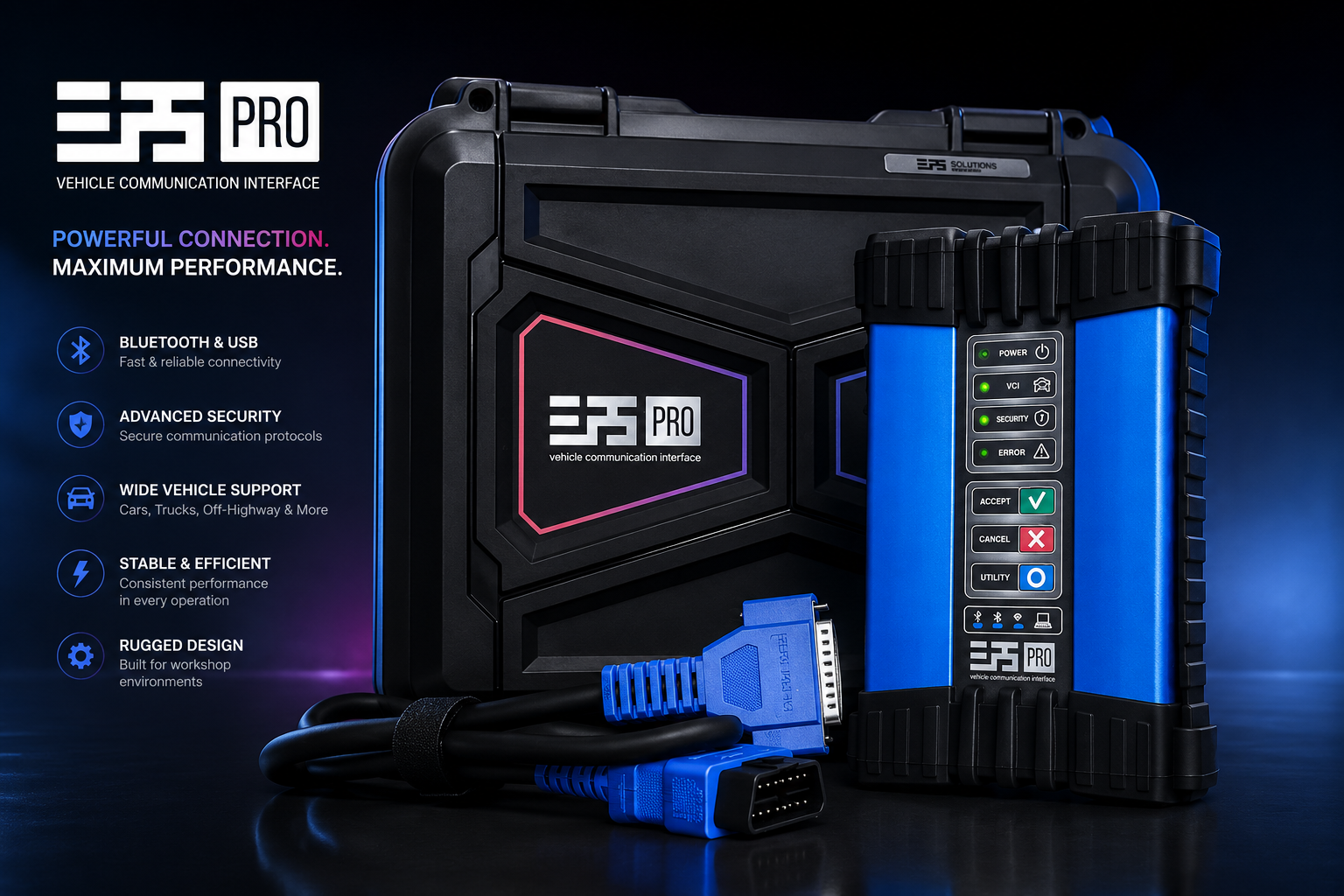

ELP5 PRO VCI
A state-of-the-art interface that links a host PC or Android-based device with a vehicle's diagnostic connector — enabling fast, reliable diagnostics, flashing and complex programming.
Three CAN channels, UART, J1850 and flexible configuration support a wide range of communication protocols for maximum compatibility.
Modes of Operation
Pass-Thru Interface
Pass-Thru interface device supporting industry standards:
- J2534-1 Pass-Thru Vehicle Programming API
- J2534-2 Optional Pass-Thru Features API (partial)
Stand-alone Device
Stand-alone device controlled by DiagProg® software running on an Android-based host. Full diagnostic and programming capabilities without external computer requirements.
Supported Protocols
0+ communication protocols for maximum vehicle compatibility.
Hardware Interface
Custom System Interface
Host Interface
Key Features

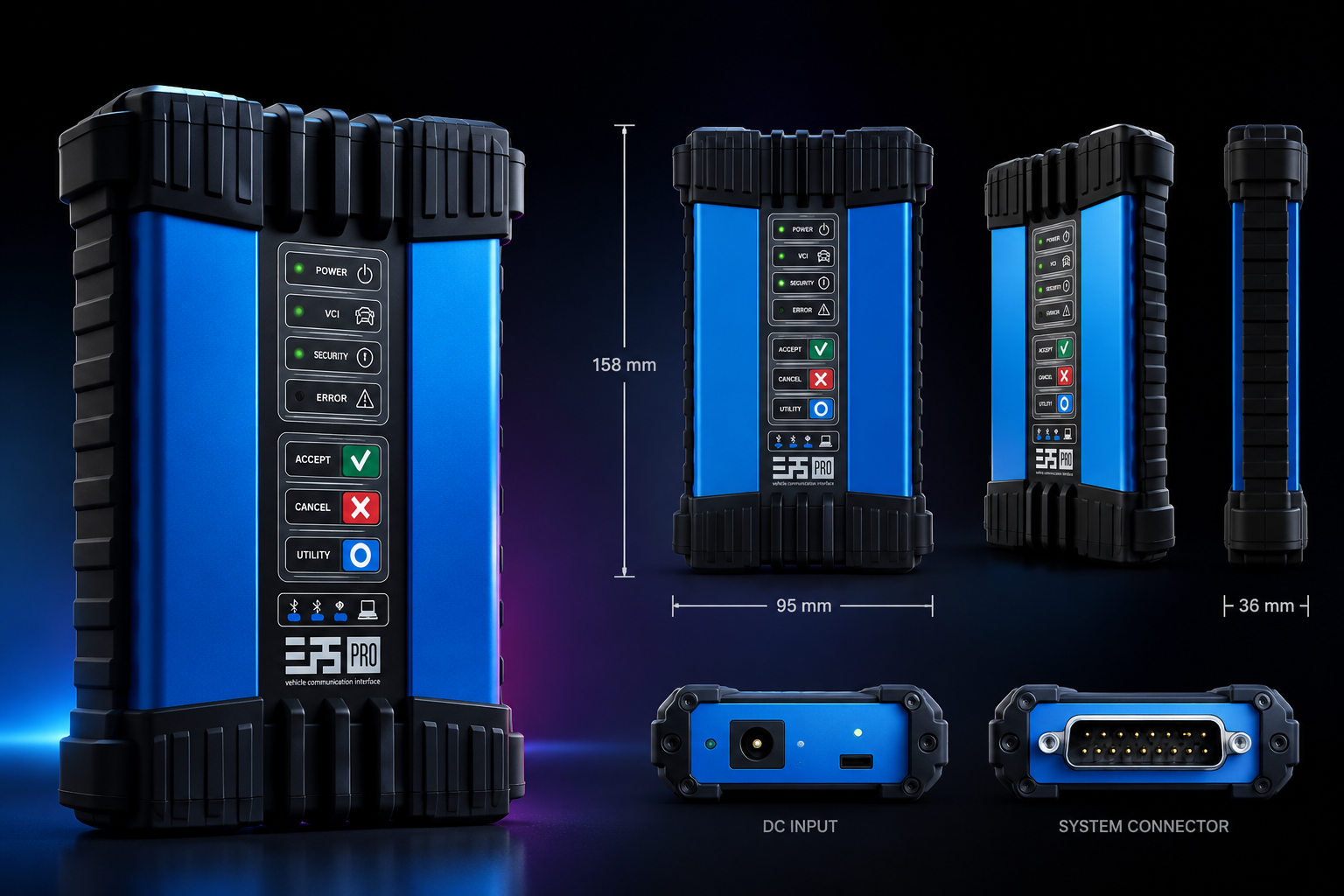

Every angle. Every detail.
Compact 158 × 95 × 36 mm rugged housing. DC input, USB-C and 25-pin system connector.
Physical Layout
- • Control panel: 4 LED indicators + Accept / Cancel / Utility
- • Host status: USB · Bluetooth · WiFi · PC link
- • Rubber strap & bumper for workshop drops
Detailed hardware spec sheet
Processor architecture, memory, electrical ratings, dimensions and connector pinouts are published in the official ELP5 PRO-VCI specification sheet. Download the PDF or request a detailed datasheet from our UK technical team.
Need More Information?
Contact us for detailed VCI specifications, pricing, and compatibility questions.
